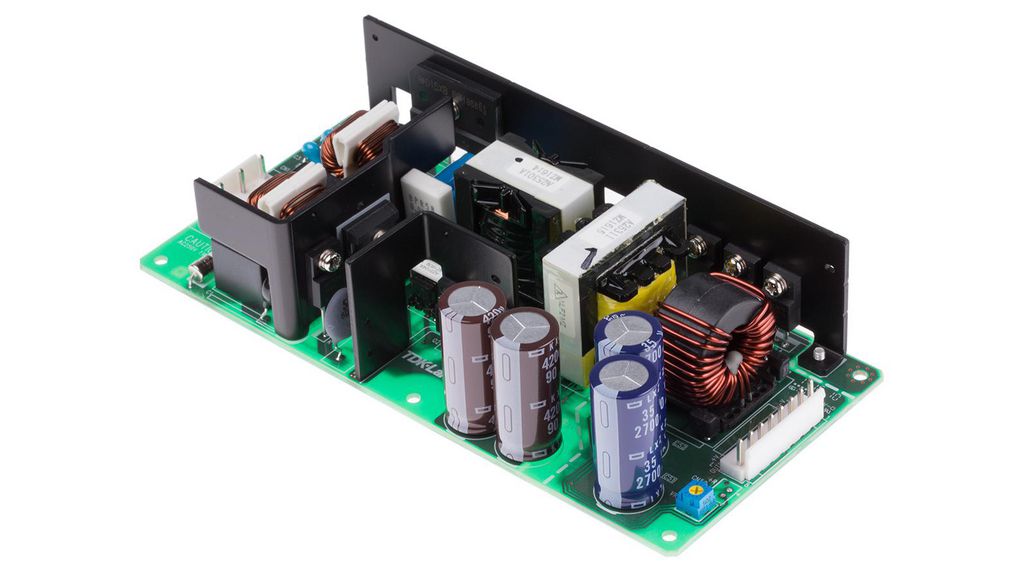

ZWS240BP-24 - Switching Power Supply, ZWS240BP-24, 24V dc, 10A, 240W, 1 Output, 120 → 370 V dc, 85 → 265 V, 240W
Image is for illustrative purposes only. Please refer to product description.
ZWS240BP-24 - Switching Power Supply, ZWS240BP-24, 24V dc, 10A, 240W, 1 Output, 120 → 370 V dc, 85 → 265 V, 240W
Select attributes and click search to find other products that match your specification
Legislation and compliance
Article Information
Depth: 42 mm Efficiency: 91 % Hazardous Area Certification: No Length: 180 mm Maximum Input Voltage: 370 V dc|265 V ac Maximum Operating Temperature: 70 °C Maximum Output Voltage: 24 V Minimum Input Voltage: 85 V ac Minimum Operating Temperature: -10 °C Mount Type: Chassis Number of Outputs: 1 Power: 240 W Product Type: Switching Power Supply SMPS Output Current: 10 A Series: ZWS240BP Standards/Approvals: EN 61000-4-3|CE|EN 55011|EN 55022-B|EN 61000-4-11|EN 61000-4-2|EN 61000-4-4|EN 61000-4-5|EN 61000-4-6|EN 61000-4-8|FCC Class B|IEC/UL/CSA/EN 62368-1|VCCI-B Weight: 520 g Width: 42 mm
