Switching Regulator, Surface, 12 V dc Output Voltage, 500 mA Output Current, 1 OutputsR-78AA12-0.5SMD-R
R-78AA12-0.5SMD-R - Switching Regulator, Surface, 12 V dc Output Voltage, 500 mA Output Current, 1 Outputs
305-22-636
R-78AA12-0.5SMD-R
Manufacturer:Recom
New to us

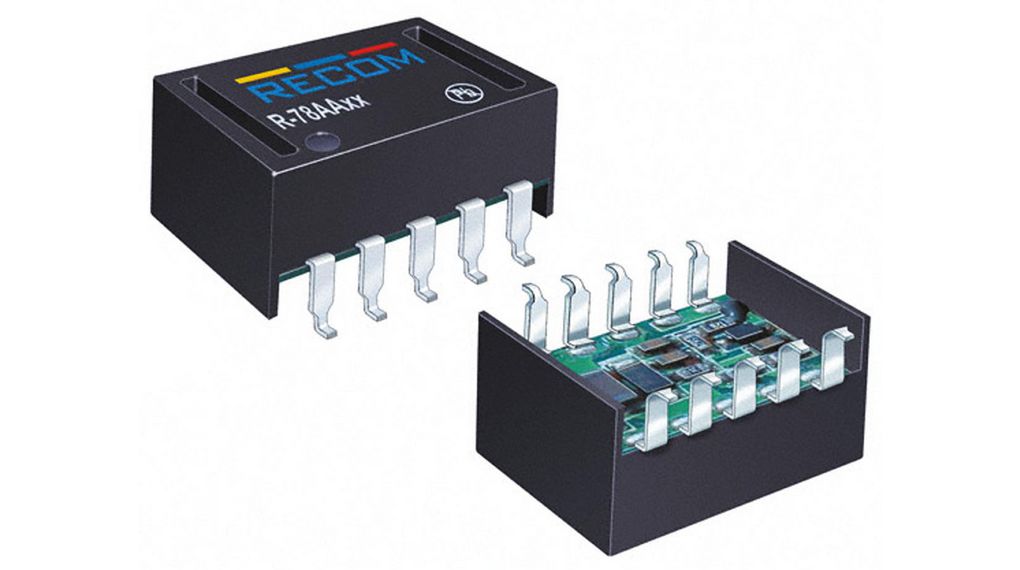

Image is for illustrative purposes only. Please refer to product description.
R-78AA12-0.5SMD-R - Switching Regulator, Surface, 12 V dc Output Voltage, 500 mA Output Current, 1 Outputs
305-22-636
R-78AA12-0.5SMD-R
Manufacturer:Recom
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Depth: 8.8 mm Efficiency: 97 % Length: 15.3 mm Line Regulation: 0.4 % Load Regulation: 0.4 % MTBF: 29253000 h Maximum Input Voltage: 32 V Maximum Operating Temperature: 85 °C Minimum Input Voltage: 15 V Minimum Operating Temperature: -40 °C Mount Type: Surface Number of Outputs: 1 Output Current: 500 mA Output Voltage 1: 12 V dc Package Type: Surface Mount Power: 0.4 W Product Type: Switching Regulator Ripple and Noise: 40 mV Pk-Pk Series: R-78AA-0.5 Standards/Approvals: RoHS Weight: 2.7 g Width: 8.8 mm
Previous Article Number
30522636
Additional information
Country of origin Taiwan (TW)
Manufacturer Recom
Gross weight (incl. package) 800 Gram
Dimensions (incl. package) 420 x 350 x 30 MM
Customs number 8504409590
UNSPSC (v5.03) 32101619
