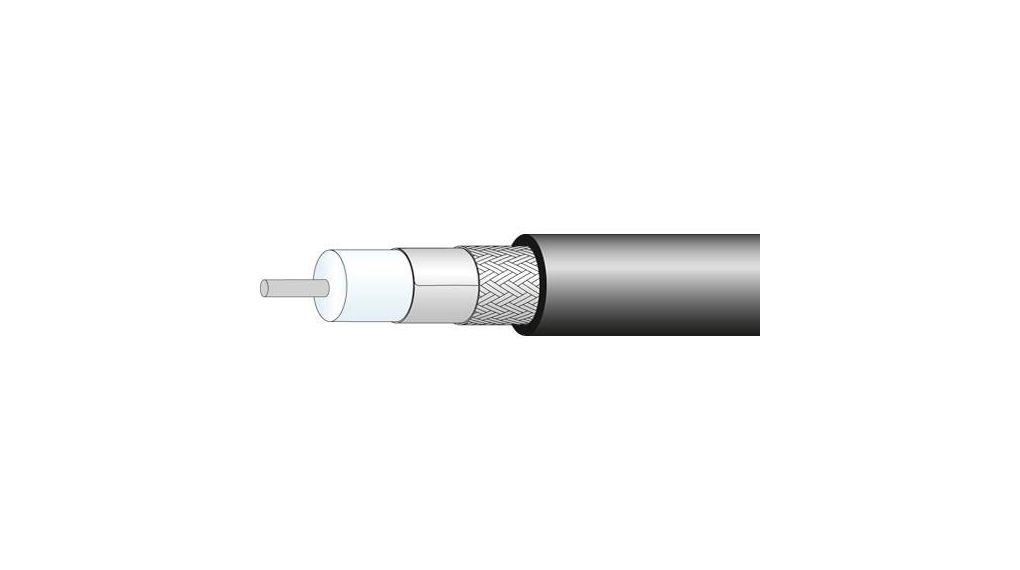

84132035 - SPUMA 400-FR-01 Series, Flexible RF Cable Coaxial, Unterminated 50 Ohm 50Ohm
Image is for illustrative purposes only. Please refer to product description.
84132035 - SPUMA 400-FR-01 Series, Flexible RF Cable Coaxial, Unterminated 50 Ohm 50Ohm
Select attributes and click search to find other products that match your specification
Legislation and compliance
Article Information
Attenuation: 0.42 dB Characteristic Impedance: 50 Ohm Coaxial Type: Flexible RF Cable Conductor Material: Aluminium|Copper Conductor Type: Wire Fire Behaviour: Flame Retardant Jacket Colour: Jet Black Jacket Material: Low Smoke Free Halogen Maximum Operating Temperature: 85 °C Minimum Operating Temperature: -40 °C Outside Diameter: 10.25 mm Product Type: Coaxial Cable Series: SPUMA 400-FR-01 Standards/Approvals: 1907/2006/EC (REACH))|IEC 60754|IEC 60332-3-25|2012/19/EU (WEEE))|EN 61034-2|EN 60332-1-2|NFPA-130|2000/53/EC (ELV))|EN 45545-2 HL3|2011/305/EU (CPR))|2011/65/EU (RoHS))|EN 50266-2-5 Terminated/Unterminated: Unterminated Voltage: 1.6 kVrms
