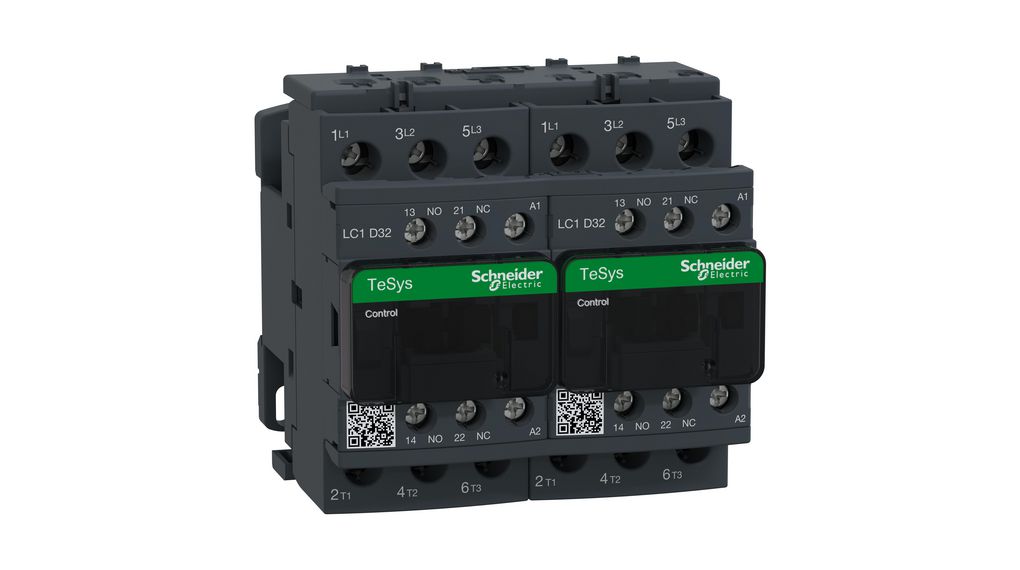

LC2D32F7 - Schneider Electric TeSys D LC2D Contactor, 110 V ac Coil, 3-Pole, 32 A, 15 kW, 3NO, 690 V ac 1NO + 1NC 110V
Image is for illustrative purposes only. Please refer to product description.
LC2D32F7 - Schneider Electric TeSys D LC2D Contactor, 110 V ac Coil, 3-Pole, 32 A, 15 kW, 3NO, 690 V ac 1NO + 1NC 110V
Select attributes and click search to find other products that match your specification
Article Information
Auxiliary Contact Configuration: 1 NO/1 NC Better World Product: Yes Coil Voltage: 110 V ac Contact Current: 32 A Contact Voltage: 690 V Control Circuit Voltage Uc: 110 V ac 50/60 Hz Depth: 86 mm Function: Reversing Length: 90 mm Maximum Operating Temperature: 60 °C Minimum Operating Temperature: -40 °C Mount Type: Rail Normal State Configuration: 3 NO Number of Auxiliary Contacts: 2 Number of Poles: 3 Pole and Throw Configuration: 3P Power Rating: 15 kW Product Type: Contactor Series: LC2D Standards/Approvals: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, BV, RINA, CCC, GL, CSA, GOST, DNV, UL, UKCA, LROS Terminal Type: Screw Width: 90 mm
