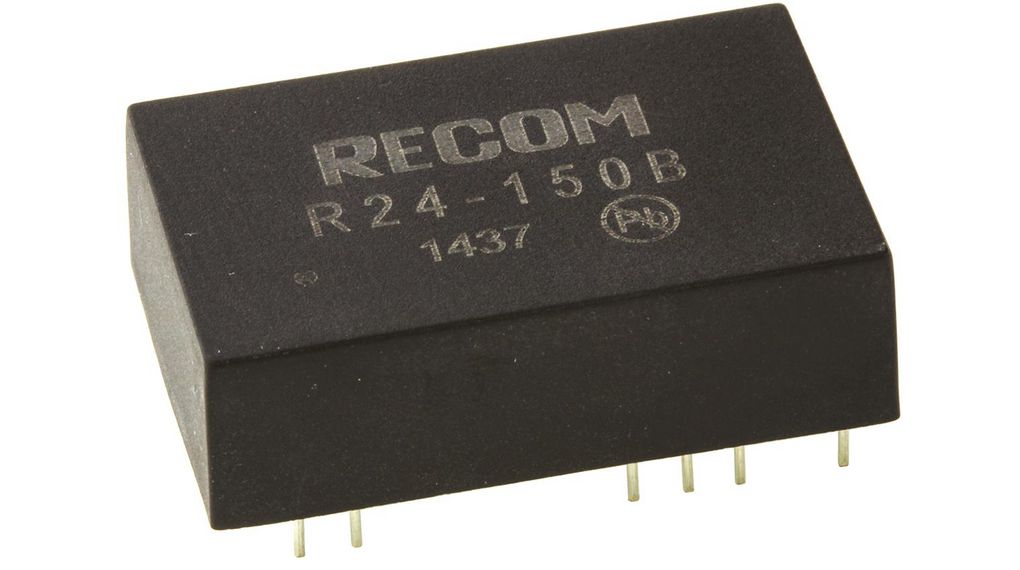

Rxx-B DC-DC Converter, 95 → 210V dc/ 50mA Output, 21 → 27 V dc Input, 5W, Through Hole, +70°C Max, 21 ... 27V, 135V, 50mA, 5WR24-150B
R24-150B - Rxx-B DC-DC Converter, 95 → 210V dc/ 50mA Output, 21 → 27 V dc Input, 5W, Through Hole, +70°C Max, 21 ... 27V, 135V, 50mA, 5W
305-05-834
R24-150B
Manufacturer:Recom
New to us
Image is for illustrative purposes only. Please refer to product description.
R24-150B - Rxx-B DC-DC Converter, 95 → 210V dc/ 50mA Output, 21 → 27 V dc Input, 5W, Through Hole, +70°C Max, 21 ... 27V, 135V, 50mA, 5W
305-05-834
R24-150B
Manufacturer:Recom
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Depth: 9.4 mm Efficiency: 84 % Isolation Voltage: 3 kV Length: 31.8 mm MTBF: 1400000 h Maximum Input Voltage: 27 V Maximum Operating Temperature: 85 °C Maximum Output Power: 5 W Minimum Input Voltage: 21 V Minimum Operating Temperature: -40 °C Mount Type: Through Hole Number of Outputs: 1 Number of Pins: 12 Output Current 1: 50 mA Output Voltage 1: 135 V dc Package Type: DIP-24 Product Type: DC/DC Converter Series: R24 Standards/Approvals: No Width: 20.3 mm
Previous Article Number
30505834
Additional information
Country of origin Taiwan (TW)
Manufacturer Recom
Gross weight (incl. package) 14 Gram
Dimensions (incl. package) 92 x 82 x 23 MM
Customs number 8504409590
UNSPSC (v5.03) 39121008
EAN 5059039741564
