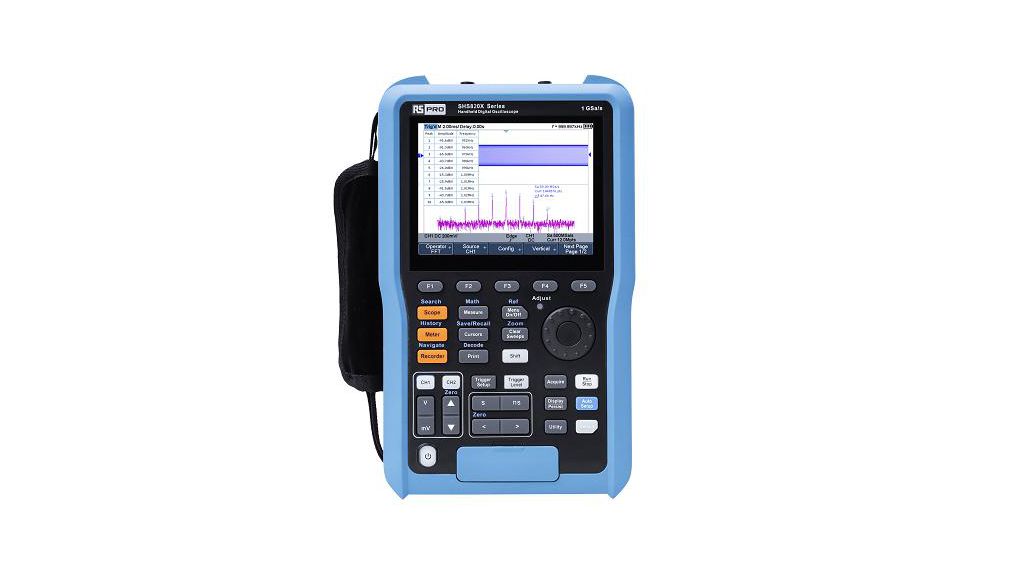

2543505 - RS PRO, 200MHz Handheld Oscilloscope, 2 Analogue Channels, 0 Digital Channelsx 200MHz
Image is for illustrative purposes only. Please refer to product description.
2543505 - RS PRO, 200MHz Handheld Oscilloscope, 2 Analogue Channels, 0 Digital Channelsx 200MHz
Select attributes and click search to find other products that match your specification
Legislation and compliance
Article Information
Bandwidth: 200 MHz Battery Life: 5.5 h Battery Type: Lithium Depth: 276 mm Display Type: TFT LCD Height: 68 mm Interface Type: USB Maximum Time Base: 100 s/div Maximum Vertical Sensitivity: 100 V/div Memory Depth: 12 Mpts Minimum Time Base: 1 ns/div Minimum Vertical Sensitivity: 2 mV/div Number of Channels: 2 Oscilloscope Form: Digital Sampling Oscilloscope Type: Handheld Power Source: Battery Product Type: Oscilloscope Rise Time: 2 ns Safety Category Level: CAT III Safety Category Voltage: 600 V Screen Size: 5.6 in Series: Model Number 2543505 Standards/Approvals: CE|UL / cTUVus Vertical Resolution: 18 bit
