RP15-FW DC-DC Converter, ±12V dc/ ±625mA Output, 9 → 36 V dc Input, 15W, Through Hole, +75°C Max Temp, 9 ... 36V, 15WRP15-2412DFW
RP15-2412DFW - RP15-FW DC-DC Converter, ±12V dc/ ±625mA Output, 9 → 36 V dc Input, 15W, Through Hole, +75°C Max Temp, 9 ... 36V, 15W
305-04-782
RP15-2412DFW
Manufacturer:Recom
New to us

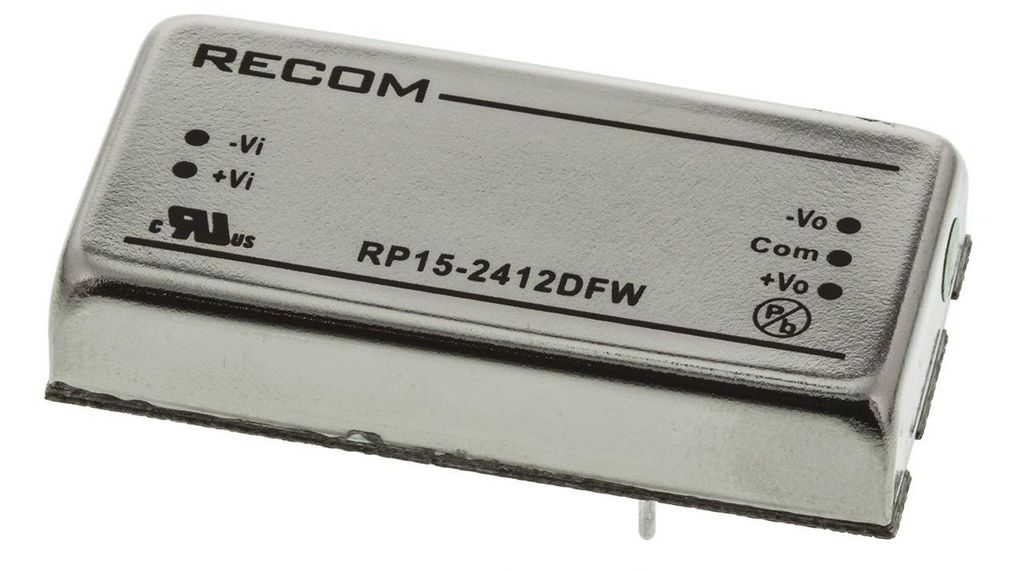

Image is for illustrative purposes only. Please refer to product description.
RP15-2412DFW - RP15-FW DC-DC Converter, ±12V dc/ ±625mA Output, 9 → 36 V dc Input, 15W, Through Hole, +75°C Max Temp, 9 ... 36V, 15W
305-04-782
RP15-2412DFW
Manufacturer:Recom
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Depth: 10.2 mm Efficiency: 85 % Isolation Voltage: 1.6 kV Length: 25.4 mm MTBF: 2350000 h Maximum Input Voltage: 36 V Maximum Operating Temperature: 85 °C Maximum Output Power: 15 W Minimum Input Voltage: 9 V Minimum Operating Temperature: -40 °C Mount Type: Through Hole Number of Outputs: 2 Number of Pins: 6 Output Current 2: 625 mA Output Voltage 1: ±12 V Output Voltage Adjustment Range: 9/36 V Package Type: Tube Product Type: DC/DC Converter Ripple and Noise: 75 mV Pk-Pk Series: RP15-FW Standards/Approvals: UR|RoHS Weight: 27 g Width: 10.2 mm
Previous Article Number
30504782
Additional information
Country of origin Taiwan (TW)
Manufacturer Recom
Gross weight (incl. package) 48 Gram
Dimensions (incl. package) 160 x 105 x 20 MM
Customs number 8504409590
UNSPSC (v5.03) 39121008
EAN 5059039741748
