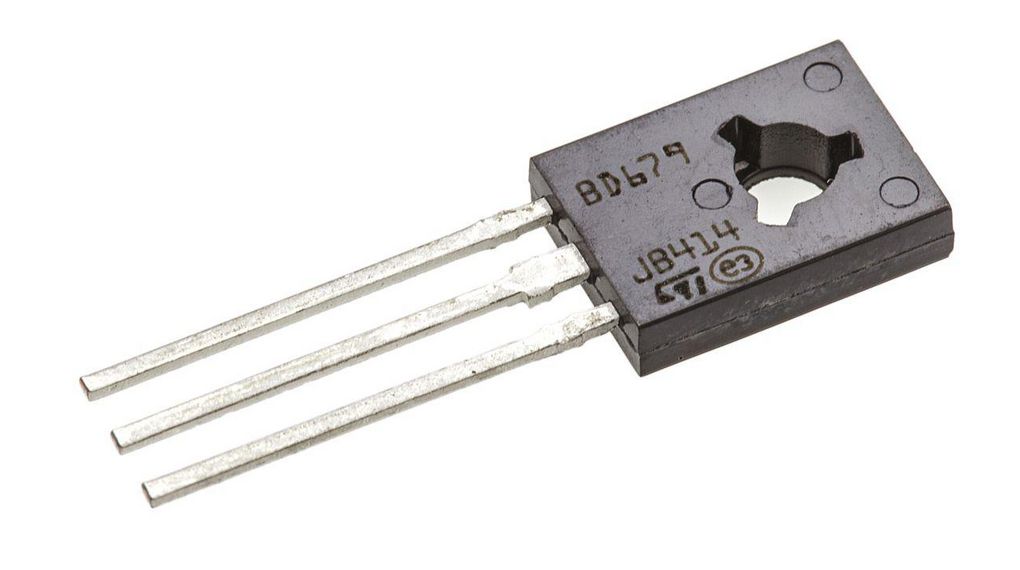

BD679 - Renesas Electronics BD679 1 Darlington Transistor NPN, 4 A 80 V HFE:750, 3-Pin SOT-32, SOT-32
Image is for illustrative purposes only. Please refer to product description.
BD679 - Renesas Electronics BD679 1 Darlington Transistor NPN, 4 A 80 V HFE:750, 3-Pin SOT-32, SOT-32
Select attributes and click search to find other products that match your specification
Legislation and compliance
Article Information
Automotive Standard: No Height: 10.8 mm Length: 7.8 mm Maximum Collector Base Voltage (VCBO): 80 V Maximum Collector Cut-off Current: 0.2 mA Maximum Collector Emitter Saturation Voltage (Vce(SAT)): 2.5 V Maximum Collector Emitter Voltage (Vceo): 80 V Maximum Continuous Collector Current (Ic): 4 A Maximum Emitter Base Voltage (VEBO): 5 V Maximum Operating Temperature: 150 °C Minimum DC Current Gain (hFE): 750 Minimum Operating Temperature: -65 °C Mount Type: Through Hole Number of Elements per Chip: 1 Package Type: SOT-32 Pin Count: 3 Product Type: Darlington Transistor Series: BD679 Standards/Approvals: No Transistor Polarity: NPN Width: 2.7 mm
