NSH Series Right Angle Surface PCB Header, 2 Contact(s), 1 mm Pitch, 1 Row(s), Shrouded, Pack of 10 piecesSM02B-NSHSS-TB(LF)(SN)
SM02B-NSHSS-TB(LF)(SN) - NSH Series Right Angle Surface PCB Header, 2 Contact(s), 1 mm Pitch, 1 Row(s), Shrouded, Pack of 10 pieces
305-22-423
SM02B-NSHSS-TB(LF)(SN)
Manufacturer:JST
New to us

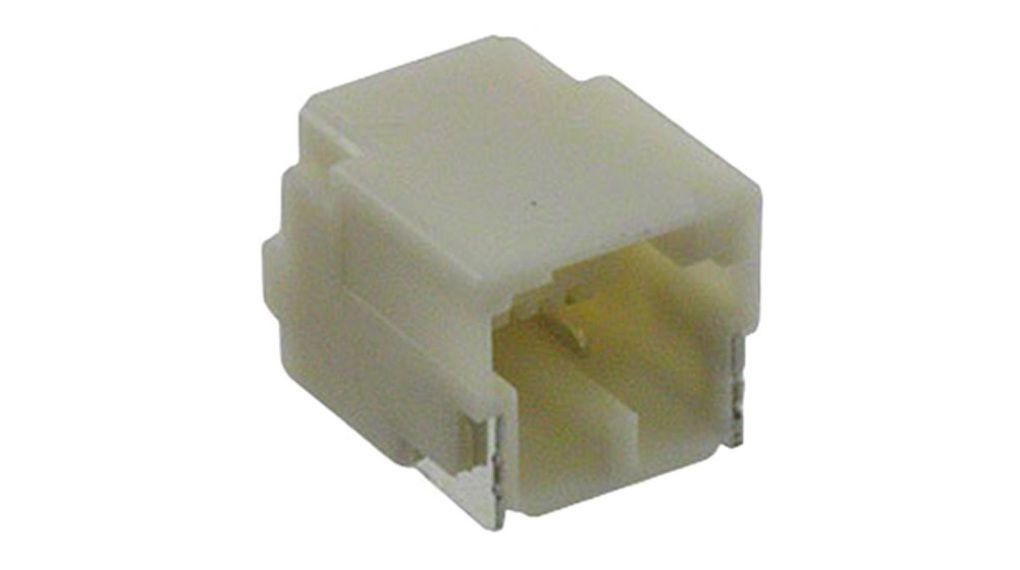

Image is for illustrative purposes only. Please refer to product description.
SM02B-NSHSS-TB(LF)(SN) - NSH Series Right Angle Surface PCB Header, 2 Contact(s), 1 mm Pitch, 1 Row(s), Shrouded, Pack of 10 pieces
305-22-423
SM02B-NSHSS-TB(LF)(SN)
Manufacturer:JST
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Connector System: Wire-to-Board Contact Gender: Male Contact Material: Copper Alloy Contact Plating: Tin Current: 1 A Maximum Operating Temperature: 85 °C Minimum Operating Temperature: -25 °C Mount Type: Surface Number of Contacts: 2 Number of Rows: 1 Orientation: Right Angle Pitch: 1 mm Product Type: PCB Header Row Pitch: 1 mm Series: NSH Shrouded/Unshrouded: Shrouded Standards/Approvals: No Termination Type: Solder Voltage: 50 V
Previous Article Number
30522423
Additional information
Country of origin Japan (JP)
Manufacturer JST
Gross weight (incl. package) 10 Gram
Dimensions (incl. package) 125 x 75 x 5 MM
Customs number 8536693000
UNSPSC (v5.03) 39121402
