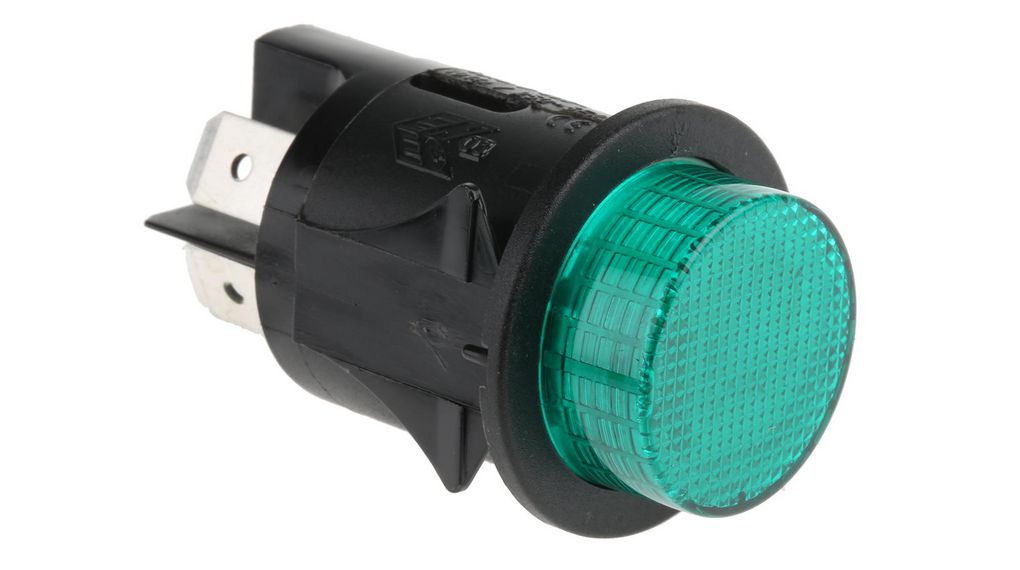

Molveno Illuminated Push Button Switch, Latching, Panel Mount, 25mm Cutout, DPST, Green LED DPST Panel MountSP6018C1E0000
SP6018C1E0000 - Molveno Illuminated Push Button Switch, Latching, Panel Mount, 25mm Cutout, DPST, Green LED DPST Panel Mount
304-95-018
SP6018C1E0000
Manufacturer:Molveno
New to us
Image is for illustrative purposes only. Please refer to product description.
SP6018C1E0000 - Molveno Illuminated Push Button Switch, Latching, Panel Mount, 25mm Cutout, DPST, Green LED DPST Panel Mount
304-95-018
SP6018C1E0000
Manufacturer:Molveno
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Actuator Colour: Green Actuator Style: Button Contact AC Voltage: 250 V Contact Configuration: DPST IP Rating: IP67 Illuminated: Yes LED Colour: Green Maximum Operating Temperature: 120 °C Mount Type: Panel Panel Cutout Size: 25 mm Product Type: Push Button Switch Series: SP Standards/Approvals: UL|CSA Switch Configuration: On-Off Switch Contact Current: 16 A Switch Operation: Latching Terminal Type: Tab
Previous Article Number
30495018
Additional information
Country of origin Italy (IT)
Manufacturer Molveno
Gross weight (incl. package) 14 Gram
Dimensions (incl. package) 125 x 75 x 30 MM
Customs number 8536508000
UNSPSC (v5.03) 39121510
EAN 5059045901181
