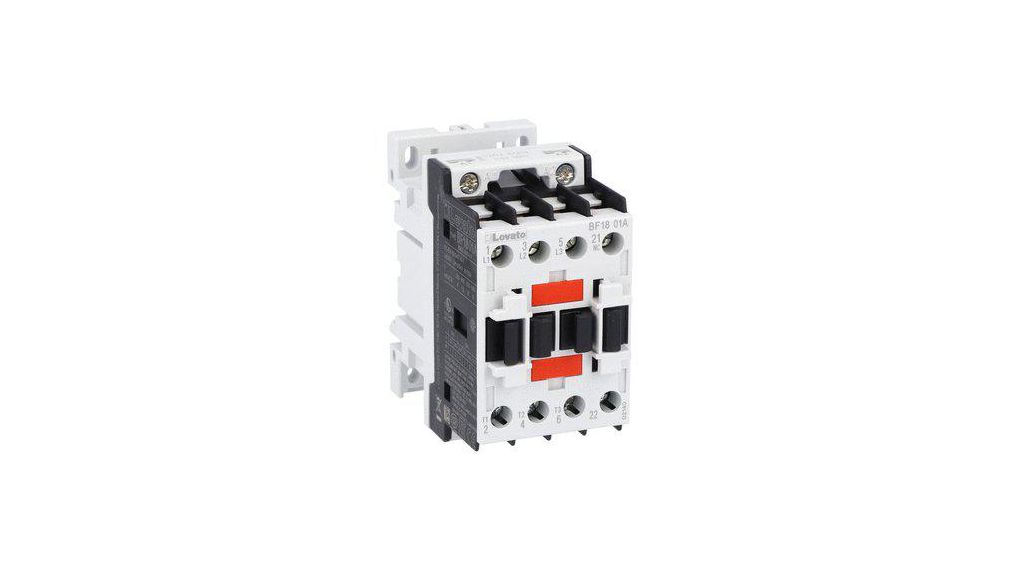

BF1801A23060 - Lovato BF18 Contactor, 230 V ac Coil, 3-Pole, 18 A, 36 kW, 1NC, 690 V 1NC 230V
Image is for illustrative purposes only. Please refer to product description.
BF1801A23060 - Lovato BF18 Contactor, 230 V ac Coil, 3-Pole, 18 A, 36 kW, 1NC, 690 V 1NC 230V
Select attributes and click search to find other products that match your specification
Legislation and compliance
Article Information
Auxiliary Contact Configuration: 1 NC Coil Voltage: 230 V ac Contact Voltage: 690 V Depth: 81.2 mm Function: Straight Length: 126 mm Maximum Operating Temperature: 70 °C Minimum Operating Temperature: -50 °C Mount Type: DIN Rail Normal State Configuration: 1 NC Number of Auxiliary Contacts: 1 Number of Poles: 3 Operational Current Ie: 18 A Pole and Throw Configuration: 3 Power Rating: 36 kW Product Type: Contactor Series: BF18 Standards/Approvals: IEC/EN/BS 60947-4-1|CSA C22.2 60947-1|CSA C22.2 60947-4-1|IEC/EN/BS 60947-1|UL 60947-1|UL 60947-4-1 Terminal Type: Screw Width: 45 mm
