6SL3220-3YE32-0UF0 - Inverter Drive, 22 kW, 3 Phase, SINAMICS G120X Series 480 V 12 A, 12A, 22kW, 380 ... 480V

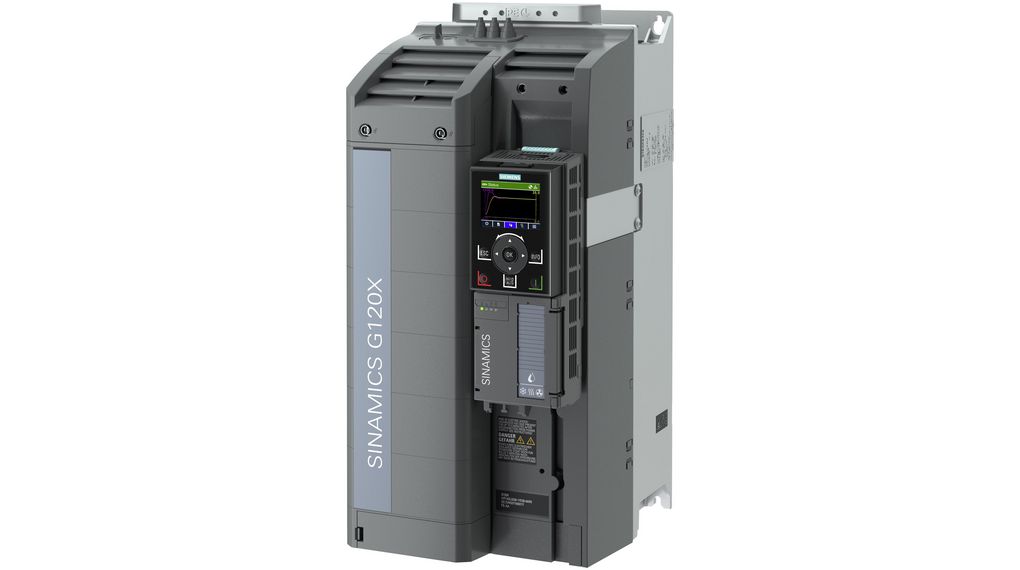

Image is for illustrative purposes only. Please refer to product description.
6SL3220-3YE32-0UF0 - Inverter Drive, 22 kW, 3 Phase, SINAMICS G120X Series 480 V 12 A, 12A, 22kW, 380 ... 480V
Select attributes and click search to find other products that match your specification
Legislation and compliance
Article Information
Better World Claim: Saves Energy Better World Product: Yes Compatible Motor Type: AC Motor Drive Type: PID Control IP Rating: IP20 Maximum Operating Temperature: 45 °C Maximum Output Current: 12 A Maximum Supply Voltage: 480 V Minimum Operating Temperature: -20 °C Minimum Supply Voltage: 380 V Mount Type: Wall Number of Phases: 3 Output Frequency: 550 Hz Overall Depth: 472 mm Overall Length: 200 mm Overall Width: 239 mm Power Rating: 22 kW Product Type: Inverter Drive Series: SINAMICS G120X Standards/Approvals: CE Certified, cUL Recognized, EAC Certified, KCC, RCM, REACH, SEMI F47, UL Listed
