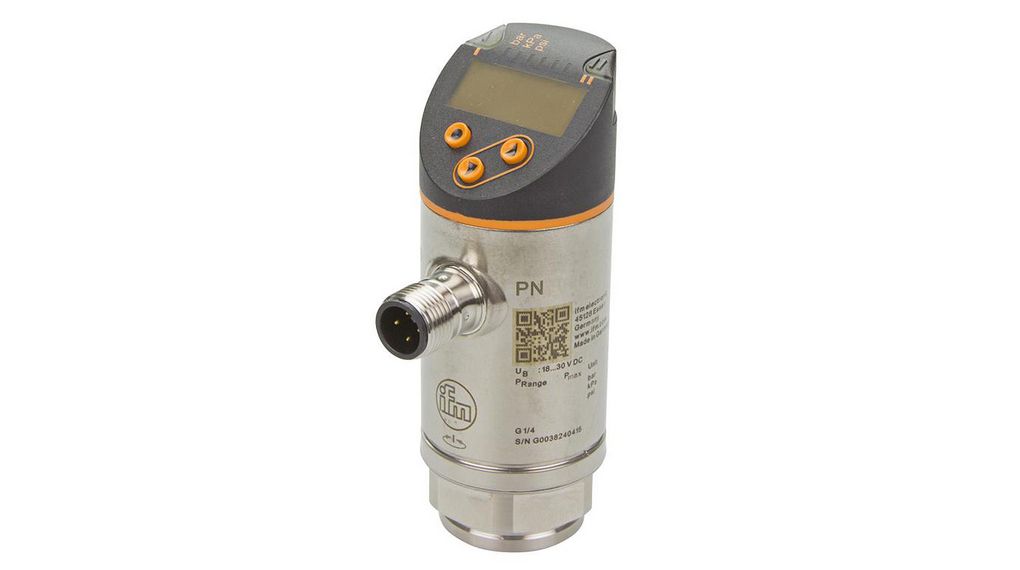

PN3594 - ifm electronic Pressure Sensor, -1bar Min, 10bar Max, Analogue + PNP-NO/NC Programmable Output, Relative Reading
Image is for illustrative purposes only. Please refer to product description.
PN3594 - ifm electronic Pressure Sensor, -1bar Min, 10bar Max, Analogue + PNP-NO/NC Programmable Output, Relative Reading
Select attributes and click search to find other products that match your specification
Legislation and compliance
Article Information
Accuracy: ±0.5 % Housing Material: Fibreglass Reinforced PBT GF30|Stainless Steel IP Rating: IP65|IP67 Inlet Connection Size: G 1/4 Maximum Operating Temperature: 80 °C Maximum Pressure Measurement: 10 bar Maximum Supply Voltage: 30 V Media Measured: Fluid Minimum Operating Temperature: -25 °C Minimum Pressure Measurement: -1 bar Minimum Supply Voltage: 18 V Output Type: PNP NO/NC|Analogue Pressure Reading Type: Relative Product Type: Pressure Sensor Response Time: 3 ms Series: PN Standards/Approvals: J006|DIN EN 60068-2-27|IEC 61131-9|DIN EN 61000-6-2|DIN EN 60068-2-6|DIN EN 61000-6-3|UL
