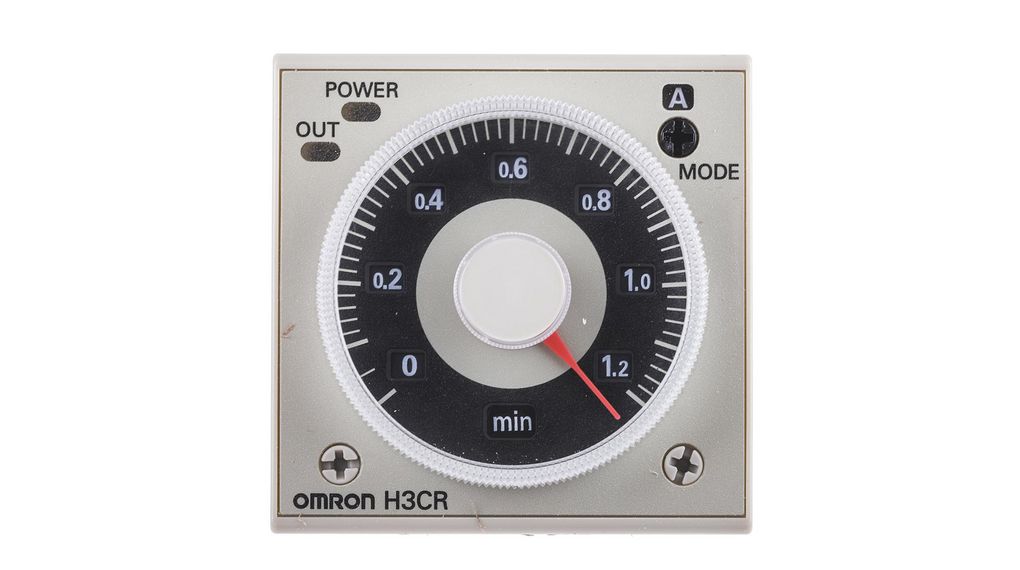

H3CR Series DIN Rail Mount Timer Relay, 100 → 125 V dc, 100 → 240V ac, 2-Contact, 0.05 s →H3CR-AP AC100-240/DC100-125
H3CR-AP AC100-240/DC100-125 - H3CR Series DIN Rail Mount Timer Relay, 100 → 125 V dc, 100 → 240V ac, 2-Contact, 0.05 s →
305-06-901
H3CR-AP AC100-240/DC100-125
Manufacturer:Omron Industrial Automation
New to us
Image is for illustrative purposes only. Please refer to product description.
H3CR-AP AC100-240/DC100-125 - H3CR Series DIN Rail Mount Timer Relay, 100 → 125 V dc, 100 → 240V ac, 2-Contact, 0.05 s →
305-06-901
H3CR-AP AC100-240/DC100-125
Manufacturer:Omron Industrial Automation
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Contact Configuration: DPDT Contact Current: 5 A Function: Multifunction Height: 81.6 mm IP Rating: IP40 Length: 48 mm Maximum Operating Temperature: 55 °C Minimum Operating Temperature: -10 °C Mount Type: DIN Rail Number of Contacts: 2 Number of Timer Functions: Multifunction Product Type: Timer Relay Series: H3CR Standards/Approvals: EN 61812-1|NK|IEC60664-1|CCC|CSA|CE|UL|Lloyds Supply AC Voltage: 100 to 125 V dc Supply DC Voltage: 100 to 125 V dc Switching Voltage: 250 V Terminal Type: Crimp Time Range: 0.05 s to 300 h Timing Adjustment: Knob Width: 48 mm
Additional information
Country of origin Indonesia (ID)
Manufacturer Omron Industrial Automation
Gross weight (incl. package) 138 Gram
Dimensions (incl. package) 122 x 65 x 64 MM
Customs number 8536490099
UNSPSC (v5.03) 39121519
EAN 4548583553286
