ENTES Current Monitoring Relay, 1 Phase, 1 CO Relay Output, DIN RailAKC-01D
AKC-01D - ENTES Current Monitoring Relay, 1 Phase, 1 CO Relay Output, DIN Rail
305-13-249
AKC-01D
Manufacturer:ENTES Elektronik
New to us

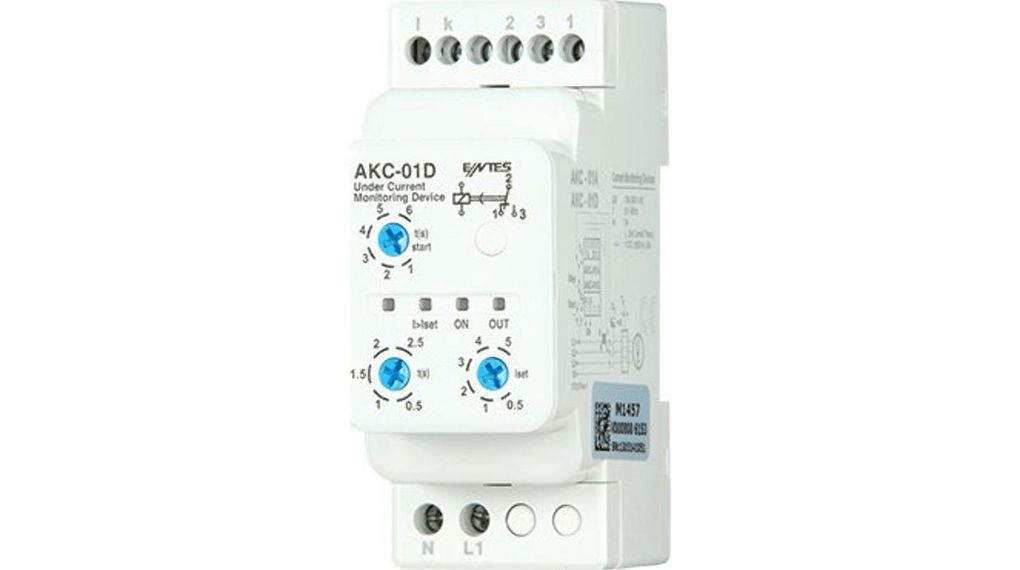

Image is for illustrative purposes only. Please refer to product description.
AKC-01D - ENTES Current Monitoring Relay, 1 Phase, 1 CO Relay Output, DIN Rail
305-13-249
AKC-01D
Manufacturer:ENTES Elektronik
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Contact Configuration: 1 CO Relay Output Electrical Phase: 1 Height: 59.7 mm IP Rating: IP20 Length: 90 mm Maximum Current Sensed: 60 A Maximum Operating Temperature: 55 °C Minimum Current Sensed: 0.5 A Minimum Operating Temperature: -5 °C Mount Type: DIN Rail Product Type: Current Monitoring Relay Relay Contact Current: 8 A Series: AKC Standards/Approvals: IEC61000-6-2|EC 61010-1 Supply AC Voltage: 230 V ac Time Delay: 1 to 6 s Width: 36 mm
Previous Article Number
30513249
Additional information
Country of origin Turkey (TR)
Manufacturer ENTES Elektronik
Gross weight (incl. package) 250 Gram
Dimensions (incl. package) 90 x 60 x 40 MM
Customs number 8536490099
UNSPSC (v5.03) 39121535
EAN 4016138741667
