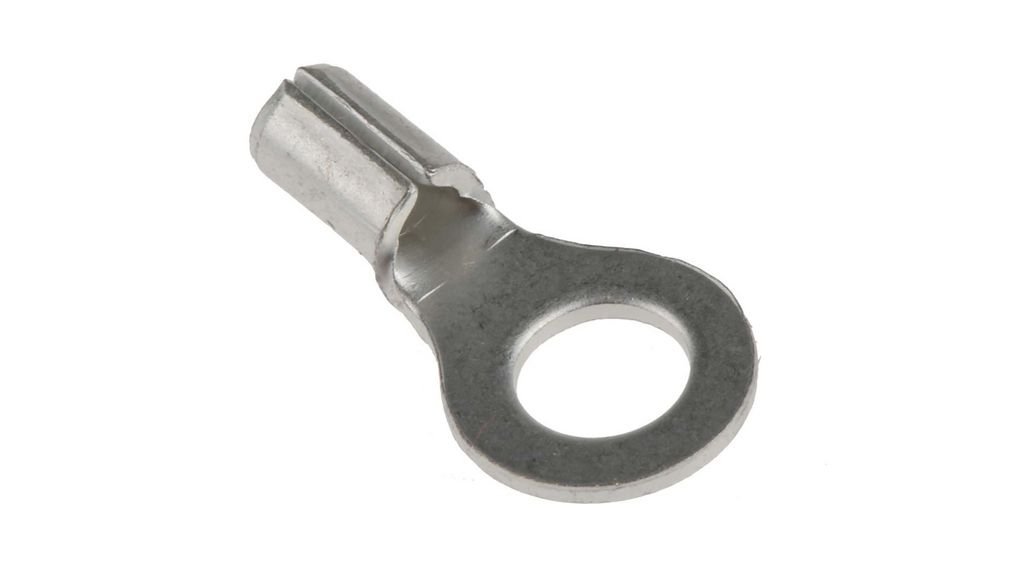

Uninsulated Ring Terminal, M4 Stud Size, 0.5mm² to 1.5mm² Wire Size, Non-Insulated ... 1.5mm², Pack of 100 pieces2082565

2082565 - Uninsulated Ring Terminal, M4 Stud Size, 0.5mm² to 1.5mm² Wire Size, Non-Insulated ... 1.5mm², Pack of 100 pieces

304-74-731
Manufacturer:RS PRO
RS PRO
New to us
Uninsulated Ring Terminal, M4 Stud Size, 0.5mm² to 1.5mm² Wire Size, Non-Insulated ... 1.5mm², Pack of 100 pieces
Image not foundImage not foundImage not foundImage not found

Image is for illustrative purposes only. Please refer to product description.

2082565 - Uninsulated Ring Terminal, M4 Stud Size, 0.5mm² to 1.5mm² Wire Size, Non-Insulated ... 1.5mm², Pack of 100 pieces

304-74-731
Manufacturer:RS PRO
RS PRO
Product specifications
1.5 mm²
Non-Insulated
150 °C

Select attributes and click search to find other products that match your specification

Downloads
Datasheets

RS_PRO_2082565_eng_tds.pdf
(PDF English )

Product Information

Legislation and compliance

RoHS
Conforms
REACH Regulation No SVHC
  No SVHC Statement

Article Information

  • Contact Material: Copper Contact Plating: Tin Inner Ring Diameter: 4.3 mm Insulation: Uninsulated Maximum Operating Temperature: 150 °C Maximum Wire Size (AWG): 16 AWG Minimum Wire Size (AWG): 22 AWG Outer Ring Diameter: 8 mm Overall Length: 21 mm Product Type: Ring Terminal Standards/Approvals: ANSI/ESD S20.20:2021 Electrostatic Control Standard|RoHS Stud Size: M4 Thickness: 0.8 mm

    • Previous Article Number
    30474731

    Additional information

    Country of origin Taiwan (TW)
    Manufacturer RS PRO
    Gross weight (incl. package) 62 Gram
    Dimensions (incl. package) 103 x 48 x 20 MM
    Customs number 8536901000
    UNSPSC (v5.03) 39121432
    EAN 5056111959497
