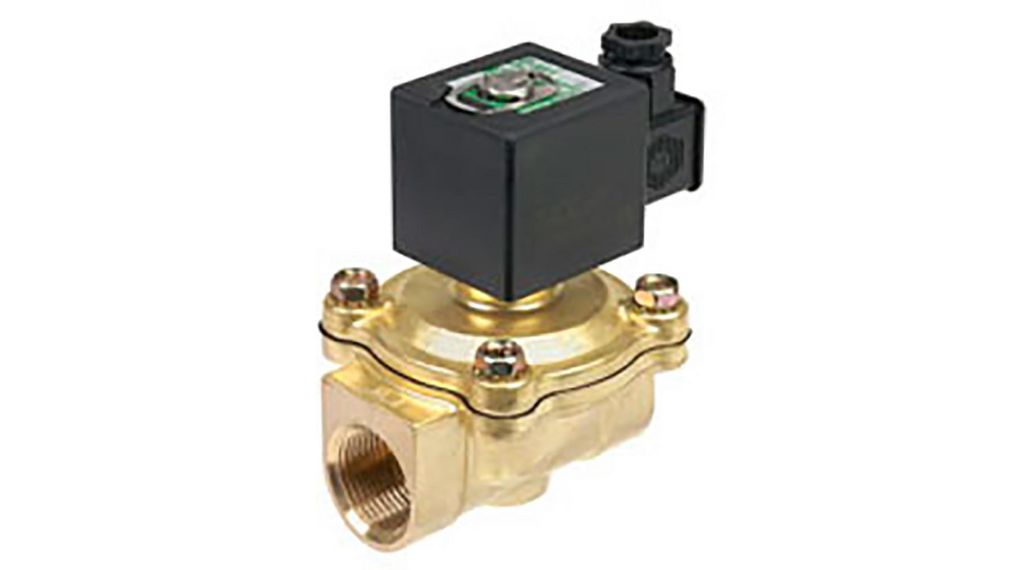

SCG238A050-230V 50HZ - EMERSON - ASCO Solenoid Valve SCG238A050-230V 50HZ, 2 port(s) , NC, 230 V ac, 1 in BSP
Image is for illustrative purposes only. Please refer to product description.
SCG238A050-230V 50HZ - EMERSON - ASCO Solenoid Valve SCG238A050-230V 50HZ, 2 port(s) , NC, 230 V ac, 1 in BSP
Select attributes and click search to find other products that match your specification
Article Information
Application: Water Body Material: Brass Default Valve Position: NC Flow Factor (Kv): 10 m³/h Hazardous Area Certification: EC|ATEX Inlet Connection Type: Threaded Inlet Thread Standard: G ISO 228/1 Maximum Operating Pressure: 10 bar Maximum Operating Temperature: 85 °C Minimum Operating Temperature: -20 °C Number of Ports: 2 Orifice Diameter: 25 mm Outlet Connection Type: Threaded Outlet Thread Standard: G Product Type: Solenoid Valve Series: 238 Servo Assist: Yes Standards/Approvals: EN 60529|ISO 4400 / EN 175301-803|WRAS approval|EN 60730-2-8 (CENELEC)|IEC 335|FCI-82-1 Supply Voltage: 230 V ac
