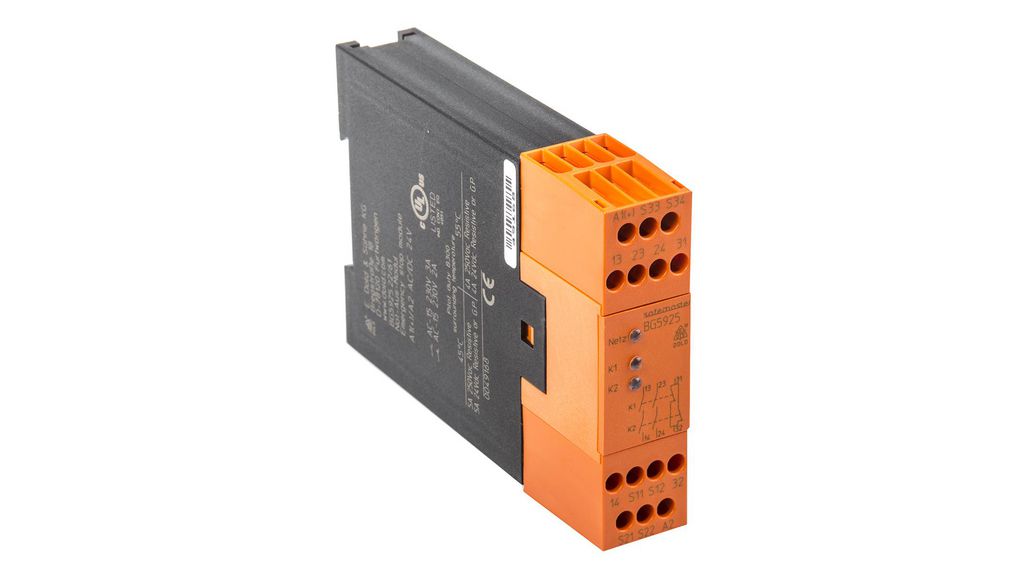

Dold Safemaster BG 5925 Safety Relay 24V ac/dc, Single/Dual-Channel 3 Safety ContactsBG5925.22 AC/DC24V

BG5925.22 AC/DC24V - Dold Safemaster BG 5925 Safety Relay 24V ac/dc, Single/Dual-Channel 3 Safety Contacts

304-85-247
BG5925.22 AC/DC24V
Manufacturer:Dold
Dold
New to us
Dold Safemaster BG 5925 Safety Relay 24V ac/dc, Single/Dual-Channel 3 Safety Contacts
Image not foundImage not foundImage not found

Image is for illustrative purposes only. Please refer to product description.

BG5925.22 AC/DC24V - Dold Safemaster BG 5925 Safety Relay 24V ac/dc, Single/Dual-Channel 3 Safety Contacts

304-85-247
BG5925.22 AC/DC24V
Manufacturer:Dold
Dold
Product specifications
250 V
DIN Rail Mount
84 mm
22.5 mm

Select attributes and click search to find other products that match your specification

Downloads
Datasheets

Dold_3277629_eng_tds.pdf
(PDF English )

Product Information

Legislation and compliance

RoHS
Conforms
REACH Regulation No SVHC
  No SVHC Statement

Article Information

  • Coil Voltage: 24 V Contact Current: 5 A Hazardous Area Certification: No Height: 84 mm IP Rating: IP40|IP20 Length: 121 mm Maximum Operating Temperature: 55 °C Minimum Operating Temperature: -15 °C Mount Type: DIN Rail Power Consumption: 2 W Product Type: Safety Relay Reset Method: Automatic Safety Category: Cat.4 EN ISO 13849-1 Series: BG 5925 Standards/Approvals: UL508|EN ISO 13849-1|IEC/EN 62061|CSA|IEC/EN 61508|IEC/EN 60947-5-1 Switching AC Voltage: 250 V Switching DC Voltage: 24 V Terminal Type: Screw Width: 22.5 mm

    • Previous Article Number
    30485247

    Additional information

    Country of origin Germany (DE)
    Manufacturer Dold
    Gross weight (incl. package) 310 Gram
    Dimensions (incl. package) 171 x 144 x 47 MM
    Customs number 8536419089
    UNSPSC (v5.03) 39121535
