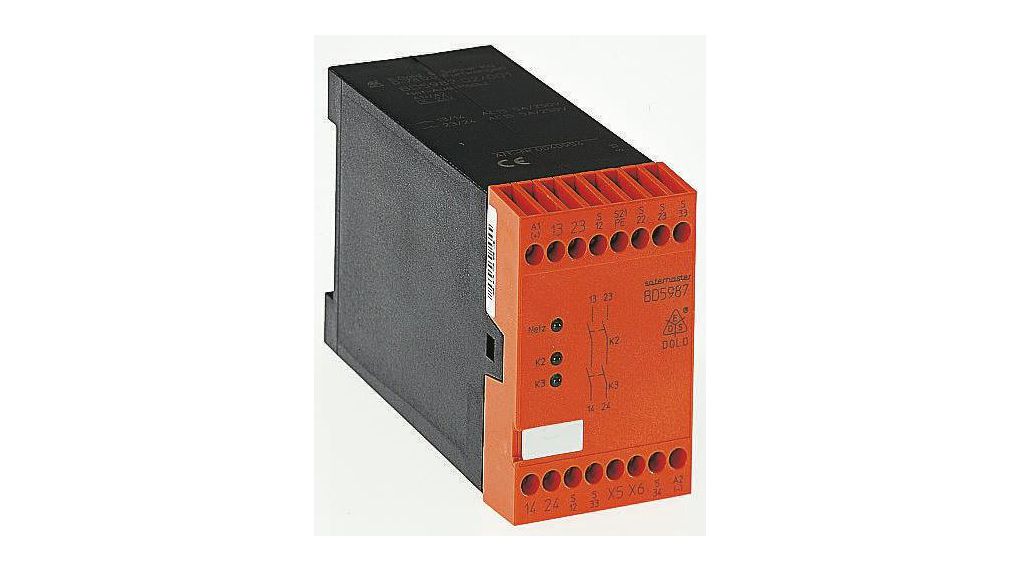

Dold Safemaster BD 5987 Safety Relay 24V dc, Single/Dual-Channel 2 Safety ContactsBD5987.02/001 DC24V
BD5987.02/001 DC24V - Dold Safemaster BD 5987 Safety Relay 24V dc, Single/Dual-Channel 2 Safety Contacts
304-89-229
BD5987.02/001 DC24V
Manufacturer:Dold
New to us
Image is for illustrative purposes only. Please refer to product description.
BD5987.02/001 DC24V - Dold Safemaster BD 5987 Safety Relay 24V dc, Single/Dual-Channel 2 Safety Contacts
304-89-229
BD5987.02/001 DC24V
Manufacturer:Dold
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Coil Voltage: 24 V dc Hazardous Area Certification: No Height: 121 mm IP Rating: IP40|IP20 Length: 74 mm Maximum Operating Temperature: 55 °C Minimum Operating Temperature: -15 °C Mount Type: DIN Rail Power Consumption: 5.5 VA Product Type: Safety Relay Safety Relay Safety Interlock Switch Reset Method: Automatic Safety Contacts: 2 Series: BD 5987 Standards/Approvals: IEC/EN 62061|EN ISO 13849-1|EN 81-20/-50|IEC/EN 60947-5-1|IEC/EN 61508|Richtlinie 2014/33/EU Switching AC Voltage: 250 V Switching DC Voltage: 24 V Terminal Type: Screw Width: 45 mm
Previous Article Number
30489229
Additional information
Country of origin Germany (DE)
Manufacturer Dold
Gross weight (incl. package) 452 Gram
Dimensions (incl. package) 172 x 146 x 71 MM
Customs number 8536419089
UNSPSC (v5.03) 39121535
