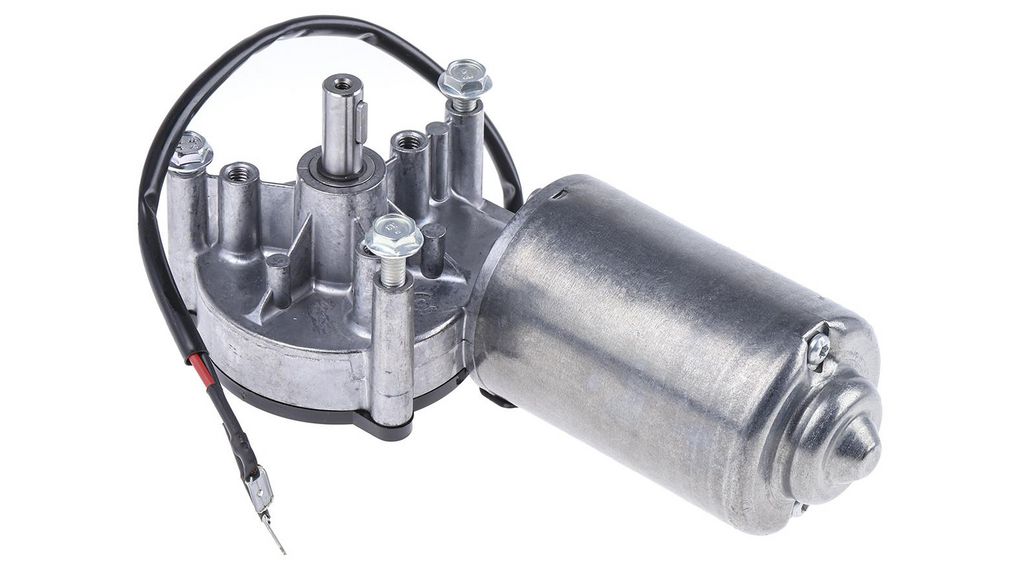

Brushed Geared DC Geared Motor, 24 V dc, 20 Nm, 3 Nm, 100 rpm, 10mm Shaft Diameter111.9199.30.00
111.9199.30.00 - Brushed Geared DC Geared Motor, 24 V dc, 20 Nm, 3 Nm, 100 rpm, 10mm Shaft Diameter
305-05-312
111.9199.30.00
Manufacturer:DOGA
New to us
Image is for illustrative purposes only. Please refer to product description.
111.9199.30.00 - Brushed Geared DC Geared Motor, 24 V dc, 20 Nm, 3 Nm, 100 rpm, 10mm Shaft Diameter
305-05-312
111.9199.30.00
Manufacturer:DOGA
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Core Construction: Iron Core Current Rating: 24 A Depth: 100.6 mm Gear Ratio: 59:1 Gearhead Type: Worm Length: 178 mm Material: Polylactic Acid Maximum Output Torque: 20 Nm Mount Type: Screw Output Speed: 100 rpm Product Type: DC Geared Motor Series: 111 Shaft Diameter: 10 mm Shaft Length: 22 mm Standards/Approvals: RoHS Sub Type: Brushed Geared Supply Voltage: 24 V Width: 60 mm
Additional information
Country of origin Spain (ES)
Manufacturer DOGA
Gross weight (incl. package) 1276 Gram
Dimensions (incl. package) 181 x 131 x 124 MM
Customs number 8501109990
UNSPSC (v5.03) 26101603
