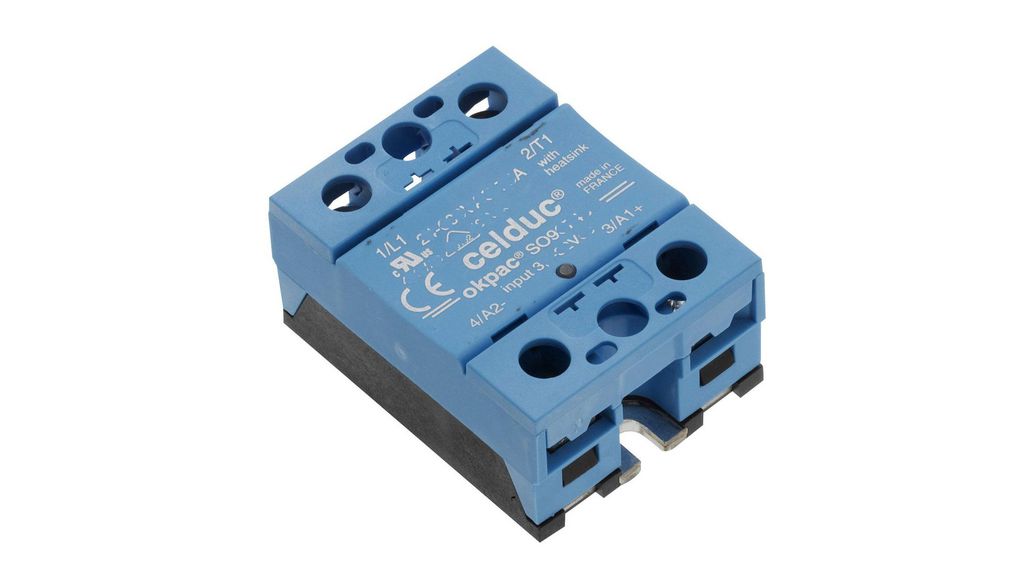

Celduc SO9 Series Solid State Relay, 25 A Load, Panel Mount, 280 V rms Load, 32 V Control, SPSTSO942460
SO942460 - Celduc SO9 Series Solid State Relay, 25 A Load, Panel Mount, 280 V rms Load, 32 V Control, SPST
304-90-169
SO942460
Manufacturer:Celduc
New to us
Image is for illustrative purposes only. Please refer to product description.
SO942460 - Celduc SO9 Series Solid State Relay, 25 A Load, Panel Mount, 280 V rms Load, 32 V Control, SPST
304-90-169
SO942460
Manufacturer:Celduc
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Contact Configuration: SPST Height: 29 mm IP Rating: IP20 Length: 58.5 mm Maximum Control Voltage: 32 V Maximum Load Current: 25 A Maximum Load Voltage: 280 Vrms Maximum Operating Temperature: 100 °C Minimum Control Voltage: 3 V Minimum Load Voltage: 12 V ac Minimum Operating Temperature: -55 °C Mount Type: DIN Rail Off State Leakage Current: 1 mA On State Resistance: 16 mOhm Output Type: Triac Product Type: Solid State Relay Series: SO9 Standards/Approvals: UKCA|VDE|EAC|RoHS|CE|CSA|cURus Switching Function: Zero Cross Switching Terminal Type: Screw Width: 44.8 mm
Previous Article Number
30490169
Additional information
Country of origin France (FR)
Manufacturer Celduc
Gross weight (incl. package) 82 Gram
Dimensions (incl. package) 130 x 85 x 32 MM
Customs number 8536490099
UNSPSC (v5.03) 39121542
EAN 3760283302297
