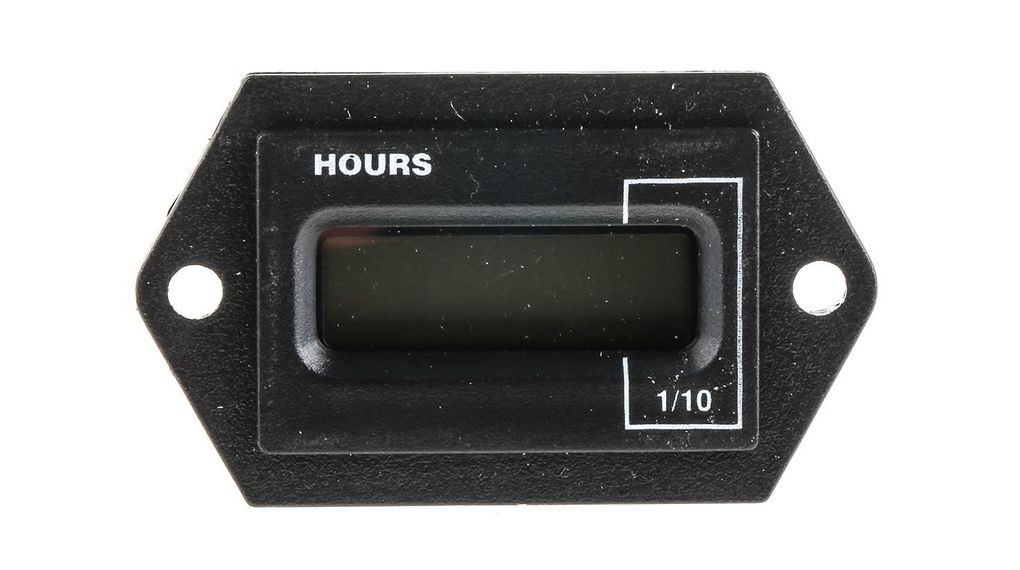

700 Hour Meter, 6 Digit LCD12 V ac/dc 12VAC/VDC701TXR002N-512D612A
701TXR002N-512D612A - 700 Hour Meter, 6 Digit LCD12 V ac/dc 12VAC/VDC
305-08-399
701TXR002N-512D612A
Manufacturer:Curtis
New to us
Image is for illustrative purposes only. Please refer to product description.
701TXR002N-512D612A - 700 Hour Meter, 6 Digit LCD12 V ac/dc 12VAC/VDC
305-08-399
701TXR002N-512D612A
Manufacturer:Curtis
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Connection Type: Tab Cutout Height: 24.1 mm Cutout Width: 36.8 mm Depth: 28.8 mm Digit Height: 5 mm Display Type: LCD Function: Hour Meter Maximum Operating Temperature: 85 °C Maximum Supply Voltage: 12 V ac/dc Mount Type: Panel Mount Number of Digits: 6 Product Type: Counter Reset Method: Electrical Series: 700 Standards/Approvals: No
Previous Article Number
30508399
Additional information
Country of origin United Kingdom (GB)
Manufacturer Curtis
Gross weight (incl. package) 42 Gram
Dimensions (incl. package) 322 x 73 x 50 MM
Customs number 9107000090
UNSPSC (v5.03) 43171810
