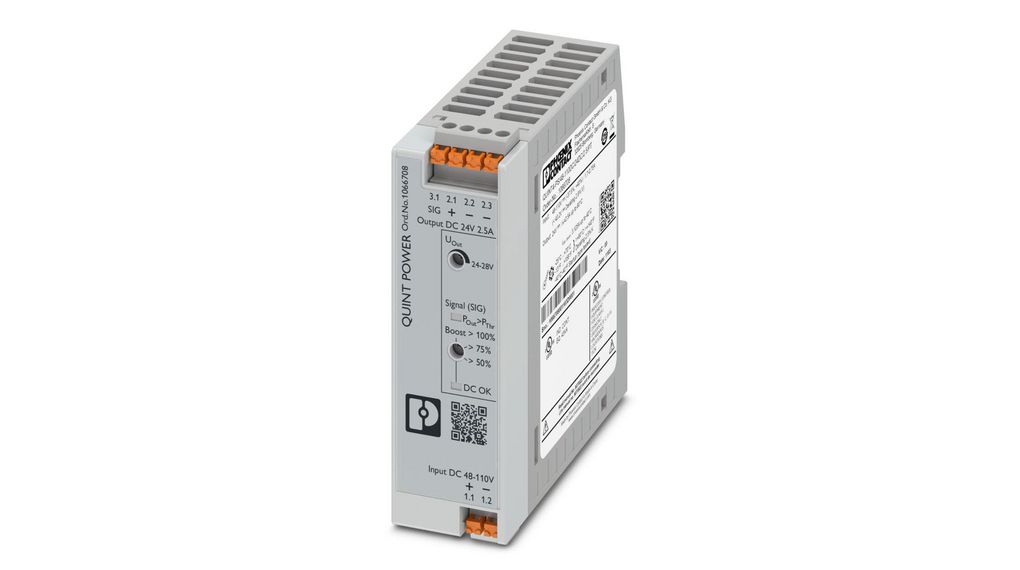

70 °C Max Temp QUINT POWER DC/DC Converter, 24 V dc/2.5 A, 110V Input, 48V Input, DIN Rail60 W -25 °C, 2.5A, 60W1066708
1066708 - 70 °C Max Temp QUINT POWER DC/DC Converter, 24 V dc/2.5 A, 110V Input, 48V Input, DIN Rail60 W -25 °C, 2.5A, 60W
305-19-492
1066708
Manufacturer:Phoenix Contact
New to us
Image is for illustrative purposes only. Please refer to product description.
1066708 - 70 °C Max Temp QUINT POWER DC/DC Converter, 24 V dc/2.5 A, 110V Input, 48V Input, DIN Rail60 W -25 °C, 2.5A, 60W
305-19-492
1066708
Manufacturer:Phoenix Contact
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Depth: 90 mm Efficiency: 93.7 % Isolation Voltage: 2.6 kV Length: 90 mm Maximum Input Voltage: 110 V Maximum Operating Temperature: 70 °C Maximum Output Power: 60 W Minimum Input Voltage: 48 V Minimum Operating Temperature: -25 °C Mount Type: DIN Rail Number of Outputs: 5 Output Current 1: 2.5 A Output Voltage 1: 24 V dc Output Voltage Adjustment Range: 24 to 28 V dc Product Type: DC/DC Converter Ripple and Noise: 20 mV Pk-Pk Series: QUINT POWER Standards/Approvals: IEC 61010-1|EN 61010-1|IEC 61010-2-201 Weight: 300.4 g Width: 32 mm
Previous Article Number
30519492
Additional information
Country of origin China (CN)
Manufacturer Phoenix Contact
Gross weight (incl. package) 300 Gram
Dimensions (incl. package) 111 x 102 x 55 MM
Customs number 8504409590
UNSPSC (v5.03) 39121008
EAN 4055626733838
